Description

The SCH GWCS9 180L Towed Sprayer is a versatile, high-performance solution for the precise application of herbicides, pesticides, and fertilisers across large and small areas.

Designed with both efficiency and operator safety in mind, it combines robust construction with intelligent features to deliver consistent, reliable spraying results.

Key Features & Benefits

• Adjustable Four-Nozzle Spray Boom The sprayer features a four-nozzle boom with a maximum width of 2,440mm (96"). The two outer nozzles are mounted on break-back sections that fold back upon contact with obstacles, reducing damage risk. For smaller areas, the outer nozzles can be individually isolated to narrow the spray width to 1,220mm (48"), providing versatile coverage for any task.

• Height-Adjustable & Removable Boom The spray boom can be adjusted to suit different towing heights and easily removed for safe storage, ensuring convenient transport and minimal setup time.

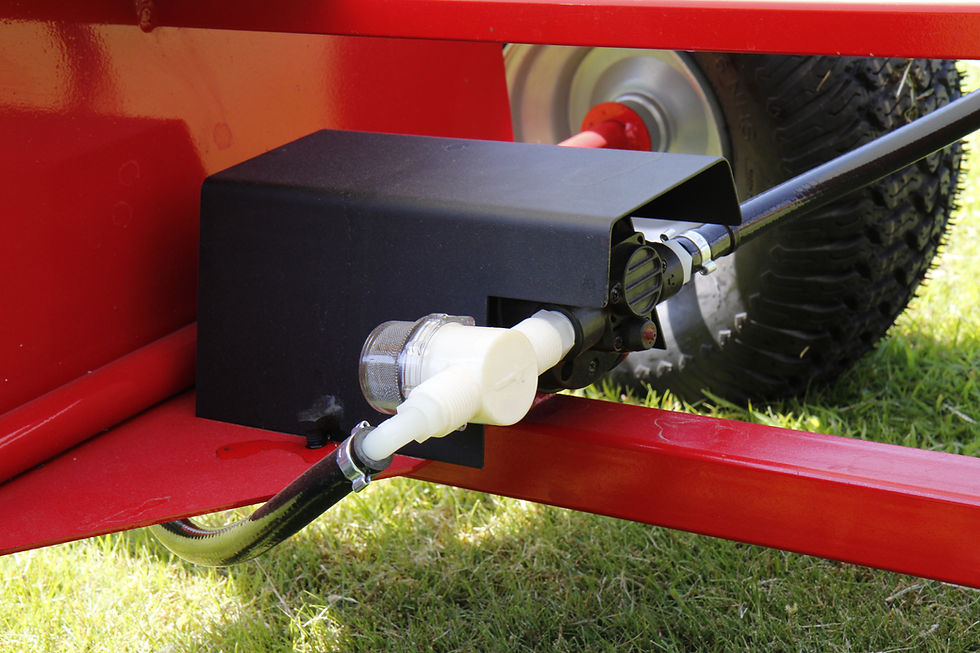

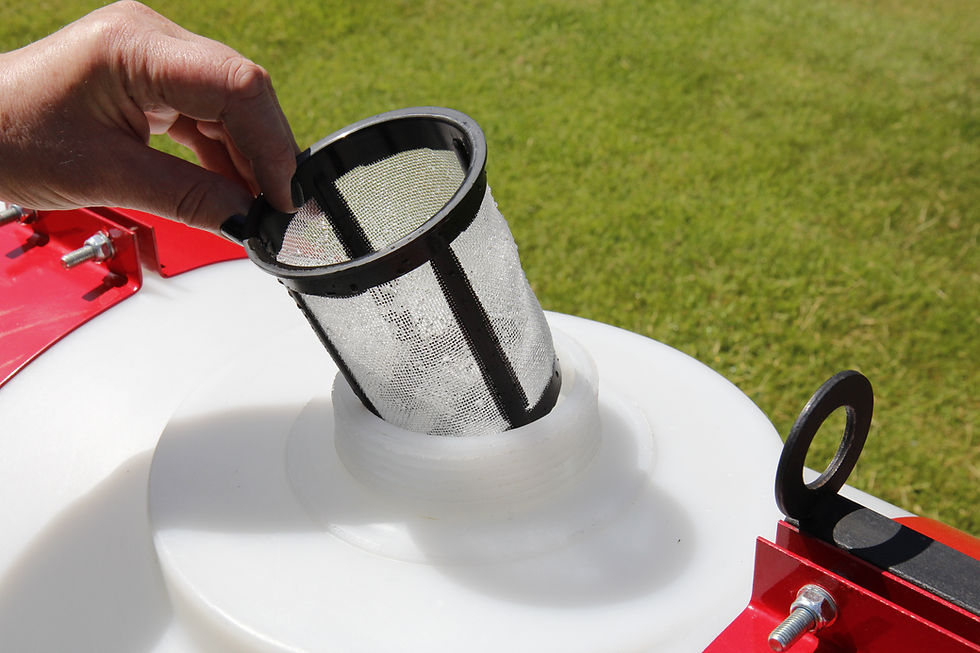

• Reliable 12V Diaphragm Pump Powered by the tractor’s battery, the durable 12-volt diaphragm pump delivers consistent pressure and includes inline filters to minimise nozzle blockages, ensuring uninterrupted operation.

• Anti-Drip Nozzle Holders Nozzles feature anti-drip valves, stopping flow immediately when the pump is turned off, preventing waste and ensuring precise application.

• Brass Hand Trigger Lance Supplied with a high-quality brass hand lance with quick-connect fittings, allowing accurate spot spraying in hard-to-reach areas such as around trees, shrubs, and garden features.

• Integrated Safety Wash Bottle Features a 5-litre wash bottle mounted on the chassis, enabling immediate rinsing in the event of contact with spray liquids and thereby enhancing operator safety.

• Fully Assembled & Ready to Use Delivered assembled for quick deployment and immediate operation.

Optional Extras

• Brass Lance 18" Extension - providing an extra 18 inches to the length of the lance.

• Hand Lance Shroud - a precision spray guard designed to minimise drift and improve accuracy when using a hand lance.

• Towbar Adaption - Towing Flexibility, optional clevis or ball hitch for easy attachment to towing vehicles.

• Dribble Bar - A controlled application, reducing spray drift.

• Spray Boom End Hoods - Limits spray drift of boom.

• Handheld Toggle Switch - For use in towing vehicle. Sprayer mounted toggle switch included as standard.

• Vertical Spraying - Side mount for vertical spraying (hedges/trees) Includes pump upgrade.

• Delivery Hose -  Extra delivery hose (price on application), 3m included as standard

• Electric Connections - Crocodile clips for battery (included as standard), choice of cigarette lighter socket, 7-pin trailer socket or 13-pin trailer socket (price on application)

The GWCS9 Towed Sprayer is designed for maximum efficiency, safety, and versatility - making it ideal for agricultural, horticultural, and grounds maintenance applications.
